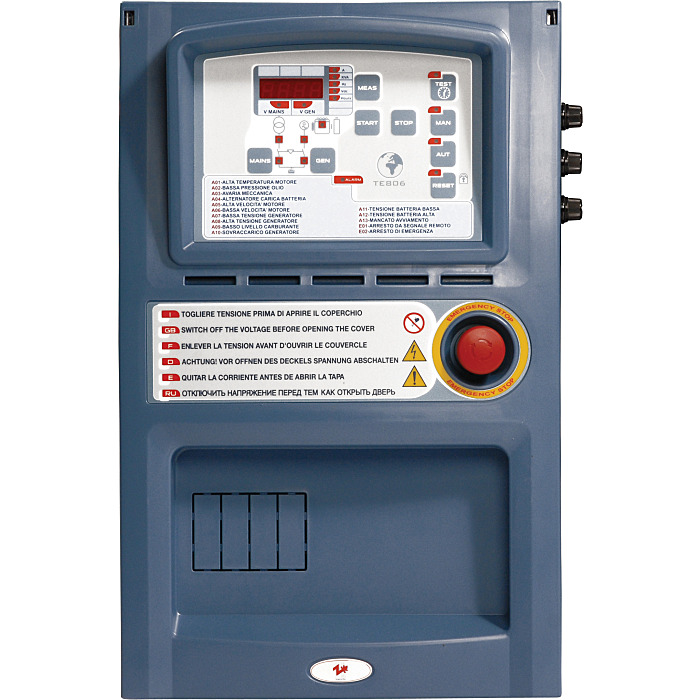

ELMAG START STOP AUTOMATIC CONTROLLER AT 206 53312
Sku: T-500033
Discontinued item
Product variants
| Sku: | Name: | SKU manufacturer: | ||
|---|---|---|---|---|
|
T-493786 | START STOP AUTOMATIC CONTROLLER AT 206 | 53347 | |
|
T-497961 | START STOP AUTOMATIC CONTROLLER AT 206 | 53309 | |
|
T-502042 | START STOP AUTOMATIC CONTROLLER AT 206 | 53362 |
doneStart-Stopp-Automatik AT 206 für Stromerzeuger von 1-44 kVA
done230 Volt - 16 kVA (72A) / 400 Volt - 31 kVA (45A) (for gasoline engines: E-Choke or Auto-Choke required, for diesel engines: Magneto-Stop required,for
done230 Volt - 16 kVA (72A) / 400 Volt - 31 kVA (45A) (for gasoline engines: E-Choke or Auto-Choke required, for diesel engines: Magneto-Stop required,for
START STOP AUTOMATIC CONTROLLER AT 206 230 Volt - 16 kVA (72A) / 400 Volt - 31 kVA (45A)
(for petrol engines): E-choke or auto-choke necessary,
for diesel engines: Magneto-Stop necessary,
for 400 volt devices art. no. 53314 required)|Automatic start-stop control AT 206 - The heart of emergency power systems|AT 206 - emergency power and more|AT 206 - start-up ensured by constant control|Status monitoring and alarm display|Emergency power units protect users and operators of technical systems from the consequences of a power failure. They consist of a generator with an electric start system and an AT 206 start-stop automatic controller. For generators with petrol engines, an additional electric choke is required. Diesel-powered generators must have a magneto-stop system. Both systems are available as options or as standard, depending on the model.|The AT 206 automatic control unit turns a power generator into a reliable emergency power system which is always ready to use.
If the mains current fails or the voltage limit is not reached, the power generator is started automatically and takes over the power supply of the connected loads.
When the mains current returns or when the correct mains voltage is restored, the generator is stopped and the automatic controller returns to monitoring status.
If necessary, a self-test of the generator is carried out at regular intervals. The motor and generator functions are
checked. The test run times and intervals are freely programmable.|The control module automatically monitors the mains power supply, the generator and the starter battery. The currently measured values can be displayed on the LCD:
- Current (A)
- Electrical power (kVA)
- Current frequency (Hz)
- Battery voltage (V DC)
- Operating hours (hours)
- Voltage (V AC)|All vital power generator systems are constantly monitored:
A01 engine temperature high / A02 oil pressure low (depending on the generator)/A03 mechanical alarm / A04 generator fault / A05 engine speed high /
A06 engine speed low / A07 generator voltage low / A08 generator voltage high / A09 fuel level low1) / A10 generator
overload / A11 battery voltage low / A12 battery voltage high / A13 false start / E01 remote stop / E02 emergency stop
(for petrol engines): E-choke or auto-choke necessary,
for diesel engines: Magneto-Stop necessary,
for 400 volt devices art. no. 53314 required)|Automatic start-stop control AT 206 - The heart of emergency power systems|AT 206 - emergency power and more|AT 206 - start-up ensured by constant control|Status monitoring and alarm display|Emergency power units protect users and operators of technical systems from the consequences of a power failure. They consist of a generator with an electric start system and an AT 206 start-stop automatic controller. For generators with petrol engines, an additional electric choke is required. Diesel-powered generators must have a magneto-stop system. Both systems are available as options or as standard, depending on the model.|The AT 206 automatic control unit turns a power generator into a reliable emergency power system which is always ready to use.
If the mains current fails or the voltage limit is not reached, the power generator is started automatically and takes over the power supply of the connected loads.
When the mains current returns or when the correct mains voltage is restored, the generator is stopped and the automatic controller returns to monitoring status.
If necessary, a self-test of the generator is carried out at regular intervals. The motor and generator functions are
checked. The test run times and intervals are freely programmable.|The control module automatically monitors the mains power supply, the generator and the starter battery. The currently measured values can be displayed on the LCD:
- Current (A)
- Electrical power (kVA)
- Current frequency (Hz)
- Battery voltage (V DC)
- Operating hours (hours)
- Voltage (V AC)|All vital power generator systems are constantly monitored:
A01 engine temperature high / A02 oil pressure low (depending on the generator)/A03 mechanical alarm / A04 generator fault / A05 engine speed high /
A06 engine speed low / A07 generator voltage low / A08 generator voltage high / A09 fuel level low1) / A10 generator
overload / A11 battery voltage low / A12 battery voltage high / A13 false start / E01 remote stop / E02 emergency stop
Product data
Manufacturer:
ELMAG
Condition:
NEW
Sku:
T-500033
SKU manufacturer:
53312
GTIN Code (EAN):
9004853533129
Weight:
2,50 Kg
All information relating to products from ELMAG. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description
- Easy-to- read LCD, easy operation with softkeys and LED displays
- Automatic mode with permanent mains monitoring, continuous readiness for start-up and fully automatic switching mains - generator - mains
- Integrated contactors electrically and mechanically locked
- Automatic test runtimes and intervals programmable
- Visual and acoustic alarm signal
- Emergency stop button
- Ideal for wall mounting in
engine room, energy container or
any other position - AT 206 for 230 volt generators
- - Models for 230 volt generators with a switching capacity of up to 9, 16, 22 or 46 kVA
- - Single-phase mains monitoring (standard)
- AT 206 for 400 volt generators
- - Models for 400 volt generators with a
switching capacity up to 18, 31, 42 or 87 kVA - - Single-phase mains monitoring (standard)
- - 3-phase mains monitoring
available as an option (recommended)
- TB 125 Vario - klein ganz groß, Notstromaggregate schützen die Benutzer und Betreiber technischer Systeme vor den Folgen eines Stromausfalls. Sie bestehen aus einem Stromerzeuger mit Elektrostart-System und der Start-Stopp-Automatiksteuerung AT 206. Für Stromerzeuger mit Benzinmotor ist zusätzlich ein Elektrochoke erforderlich. Dieselbetriebene Stromerzeuger müssen über ein Magneto-Stopp-System verfügen. Beide Systeme sind optional erhältlich oder je nach Modell serienmäßig.
- Die Automatiksteuerung AT 206 macht aus einem Stromerzeuger eine verlässliche, stets betriebsbereite Notstromanlage.
Bei Ausfall des Netzstroms bzw. bei Unterschreitung der eingestellten Spannungsgrenze wird der Stromerzeuger automatisch gestartet und übernimmt die Energieversorgung der angeschlossenen Verbraucher.
Bei Wiederkehr des Netzstroms bzw. bei Wiedererreichen der korrekten Netzspannung wird der Stromerzeuger gestoppt und die Automatiksteuerung kehrt in den Überwachungsstatus zurück.
In regelmäßigen Zeitabständen erfolgt bei Bedarf ein Selbsttest des Stromerzeugers. Dabei werden die Motor- und Generatorfunktionen
geprüft. Die Testlaufzeiten und -intervalle sind frei programmierbar. - Das Steuermodul überwacht automatisch das Stromnetz, den Generator und die Startbatterie. Die aktuell gemessenen Werte sind am LCD-Display anzeigbar:
- Stromstärke (A)
- Elektrische Leistung (kVA)
- Stromfrequenz (Hz)
- Batteriespannung (V DC)
- Betriebsstunden (hours)
- Spannung (V AC) - Alle betriebswichtigen Systeme des Stromerzeugers werden laufend überwacht:
A01-Motortemperatur hoch / A02-Öldruck niedrig (Geräteabhängig) / A03-Mechanikalarm / A04-Generatorstörung / A05-Motordrehzahl hoch /
A06-Motordrehzahl niedrig / A07-Generatorspannung niedrig / A08-Generatorspannung hoch / A09-Kraftstoffstand niedrig1) / A10-Generator
Überlast / A11-Batteriespannung niedrig / A12-Batteriespannung hoch / A13-Fehlstart / E01-Fernstoppung / E02-Not-Stopp
Additional information
Dimensions (mm):
450x285x170mm
Power cont. (230 V) (A):
72A
Power cont. (400 V) (A):
45A
Max. power (230 V) (kVA):
16kVA
Max. power (400 V) (kVA):
31kVA
Protection type:
IP20
