Eurotec EiSYS -H Insertion tool 946096
doneShank milling grooves: Nein
doneSubhead milling ribs: Nein
Product data
Product description
Screw made of high-quality A4 stainless steel
With our EiSYS-H adjustment screw, insulation material thicknesses from 60 mm to 300 mm can be easily processed.

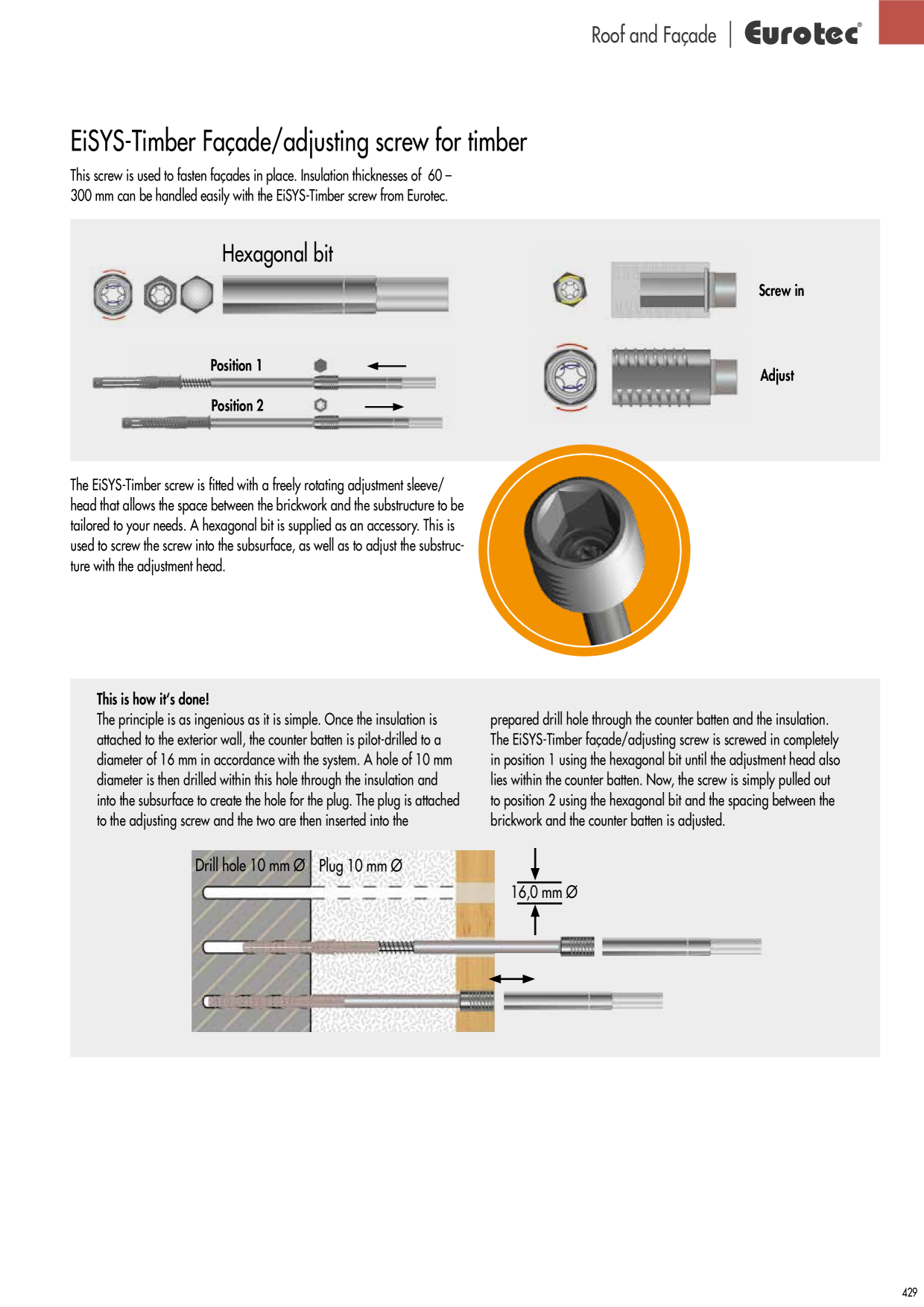

A freely rotating adjustment sleeve allows the user to adjust the distance between the masonry and the substructure. A hexagonal bit for installation is included in the scope of delivery. This is used both for screwing the screw into the substrate and for adjusting the distance using the adjustment head. This is how it’s done! Simple but ingenious! The application: Once the insulation has been attached to the outer wall, the counter-batten is pre-drilled to ø 16 mm. After the counter-batten, another hole is drilled through this hole. Drill ø 10 mm through the existing hole into the insulation and the substrate. Our Eurotec EiSYS plug is placed on the adjusting screw and inserted through the counter batten and the insulation into the substrate. Using position 1 of the enclosed hexagonal bit, the screw is now screwed in completely so that the adjustment head sits in the counter-batten. Position 2 of the bit is now used to adjust the distance between the masonry and the counter batten. +
Additional information
