Ruko Multi-layer solid drills ?Solid 3S? HSS with weldon shank (3/4”) Ø 13 mm 108443
Sku: T-13064
Discontinued item
Product variants
| Sku: | Name: | SKU manufacturer: | ||
|---|---|---|---|---|
|
T-13061 | Multi-layer solid drills ?Solid 3S? HSS with weldon shank (3/4”) Ø 10 mm | 108440 | |
|
T-13062 | Multi-layer solid drills ?Solid 3S? HSS with weldon shank (3/4”) Ø 11 mm | 108441 | |
|
T-13063 | Multi-layer solid drills ?Solid 3S? HSS with weldon shank (3/4”) Ø 12 mm | 108442 | |
|
T-13065 | Multi-layer solid drills ?Solid 3S? HSS with weldon shank (3/4”) Ø 14 mm | 108444 | |
|
T-13066 | Multi-layer solid drills ?Solid 3S? HSS with weldon shank (3/4”) Ø 15 mm | 108445 |
doneSlide the ‘Solid 3S’ multi-layer solid drill bit into the holder and tighten the hexagon socket screws.

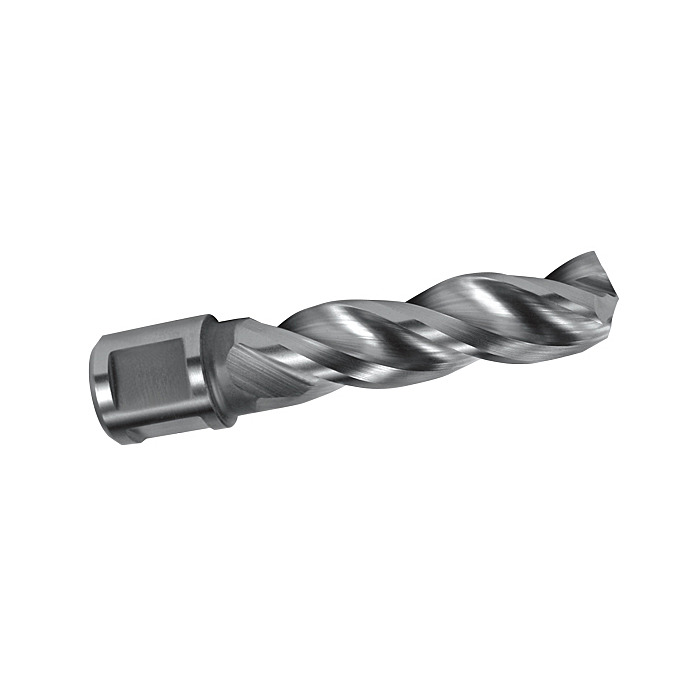

Multi-layer solid drill “Solid 3S” HSS with Weldon shank 3/4” Ø 13 mm
Product data
Manufacturer:
Ruko GmbH
Condition:
NEW
Sku:
T-13064
SKU manufacturer:
108443
GTIN Code (EAN):
4007140128201
Weight:
0,10 Kg
All information relating to products from Ruko GmbH. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description
Diameter: 13,0 mm, Cutting depth 55 mm - The multi-layer solid drill enables drilling through a number of sheets arranged on top of one another in one working step. The spiral-grooved geometry with 3 cutting edges ensures extremely high stability of the multi-layer solid drill ”Solid 3S”, thus preventing the risk of breakage of the cutting edges by overloading or jamming of the chips. Thanks to the high stability, the service life of the multi-layer solid drill ”Solid 3S” is considerably increased. This reduces the costs of use. The multi-layer solid drill ”Solid 3S” enables drilling to full dimension without centring or pre-drilling. The multi-layer solid drill ”Solid 3S” can be ground more simply than core drills of the same diameter.; For use in magnetic-stand and pillar drilling machines with morse taper retainer. In connection with RUKO arbor holders no. 108 302 / 108 303 / 108 315 / 108 316, with RUKO EasyLock no. 108 312 / 108 313 / 108 314 or a weldon direct shank such as the RUKO magnetic-stand RS5e / RS10 drill.
- Push the ”Solid 3S” multi-layer solid drill into the holder and tighten the hexagon socket screws.
- Make sure that the ”Solid 3S” multi-layer solid drill is seated properly in the holder.
- The ”Solid 3S” multi-layer solid drill is automatically locked in place with the EasyLock quick-release holder.
- Drill to size immediately, no need for punching or pre-drilling.
- The cutting geometry of the ”Solid 3S” multi-layer solid drill enables rapid chip removal upwards.
- Observe the speed table and use coolant.
Additional information
Total length:
85mm
Cutting:
HSS
Machine:
RS10 / RS20 / RS30e / RS40e
Ø Weld stem:
19mm (3/4")
