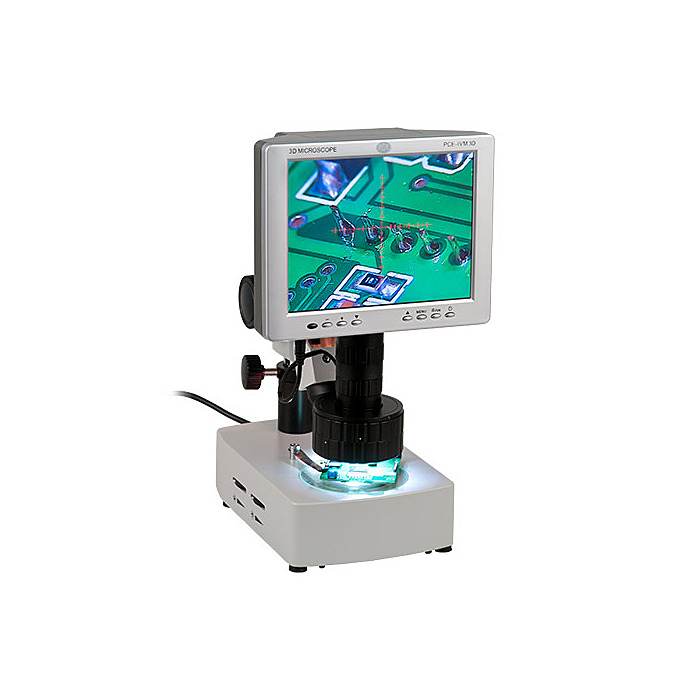

PCE Microscope / 3D Microscope PCE-IVM 3D
Sku: T-910075
Discontinued item
Product data
Manufacturer:
PCE Deutschland GmbH
Condition:
NEW
Sku:
T-910075
SKU manufacturer:
PCE-IVM 3D
GTIN Code (EAN):
4250348712158
Weight:
8,60 Kg
All information relating to products from PCE Deutschland GmbH. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description
The mechanical 3D microscope can be used for reflected and transmitted light microscopy and allows the plastic observation of three-dimensional objects. This mechanical 3D microscope makes it possible to view the object under examination from all sides thanks to a mechanical mirror (360° rotatable). You can see details with this mechanical 3D microscope that you cannot see with conventional microscopes.
In many applications, your work will be much easier. This 3D microscope is ideal for laboratory, school, industry and many other professional applications. The mechanical 3D microscope is compact, very robust and easy to use. This mechanical 3D microscope has a large working distance of 175 mm. This allows easy examination of even very large objects.
Our 3D microscope provides you with a spatial overall image of the object of observation on the LC display. The images shown on the LC display can additionally be transferred from the mechanical 3D microscope to your PC via the USB interface for further processing. The mechanical 3D microscope offers 12 ... 75x magnification and can thus be used for the inspection and processing of electronic components, circuit boards, jewelry and much more.
More information about the 3D microscope
The use of modern 3D microscopes is the key to successful work. The advanced form of light microscopy enables new techniques and applications. The 3D microscope uses structured illumination, creating and post-processing multiple images per imaging area. Thus, the resolution is doubled in the three spatial directions. The 3D microscope provides an overall spatial image of the object being viewed on an LC display.
The compact 3D microscope is designed to be simple and easy to understand, and its menu navigation is unambiguous. There are 8 languages available and the magnification is infinitely variable from 12 ...75x. The integrated image recording function allows the viewer to immediately record the image viewed or, if desired, to transfer it to a PC via the available USB interface. Fast non-contact and three-dimensional analysis of samples is used in quality control as well as in industry, research and development. The 3D surface measurement serves as a supplement to the conventional 2D (two-dimensional) measurement technique.
Application of the 3D microscope
In preparation, the 3D microscope is placed on a flat and stable surface. Then the power plug is connected to the socket and the microscope. Likewise, the power plug for the display is connected to the 12V power connection. Now the 3D microscope can be switched on with the on/off switch. The object to be examined can now be placed on the carrier plate below the objective. The distance between the object and the lower end of the objective should be approx. 30 mm (can be adjusted via the focusing wheel). If the object is too high, the position of the 3D microscope on the vertical guide can be changed using the locking screw. The desired magnification is set by turning the objective. The focusing wheel is then used to bring the image into focus.
In many applications, your work will be much easier. This 3D microscope is ideal for laboratory, school, industry and many other professional applications. The mechanical 3D microscope is compact, very robust and easy to use. This mechanical 3D microscope has a large working distance of 175 mm. This allows easy examination of even very large objects.
Our 3D microscope provides you with a spatial overall image of the object of observation on the LC display. The images shown on the LC display can additionally be transferred from the mechanical 3D microscope to your PC via the USB interface for further processing. The mechanical 3D microscope offers 12 ... 75x magnification and can thus be used for the inspection and processing of electronic components, circuit boards, jewelry and much more.
More information about the 3D microscope
The use of modern 3D microscopes is the key to successful work. The advanced form of light microscopy enables new techniques and applications. The 3D microscope uses structured illumination, creating and post-processing multiple images per imaging area. Thus, the resolution is doubled in the three spatial directions. The 3D microscope provides an overall spatial image of the object being viewed on an LC display.
The compact 3D microscope is designed to be simple and easy to understand, and its menu navigation is unambiguous. There are 8 languages available and the magnification is infinitely variable from 12 ...75x. The integrated image recording function allows the viewer to immediately record the image viewed or, if desired, to transfer it to a PC via the available USB interface. Fast non-contact and three-dimensional analysis of samples is used in quality control as well as in industry, research and development. The 3D surface measurement serves as a supplement to the conventional 2D (two-dimensional) measurement technique.
Application of the 3D microscope
In preparation, the 3D microscope is placed on a flat and stable surface. Then the power plug is connected to the socket and the microscope. Likewise, the power plug for the display is connected to the 12V power connection. Now the 3D microscope can be switched on with the on/off switch. The object to be examined can now be placed on the carrier plate below the objective. The distance between the object and the lower end of the objective should be approx. 30 mm (can be adjusted via the focusing wheel). If the object is too high, the position of the 3D microscope on the vertical guide can be changed using the locking screw. The desired magnification is set by turning the objective. The focusing wheel is then used to bring the image into focus.
