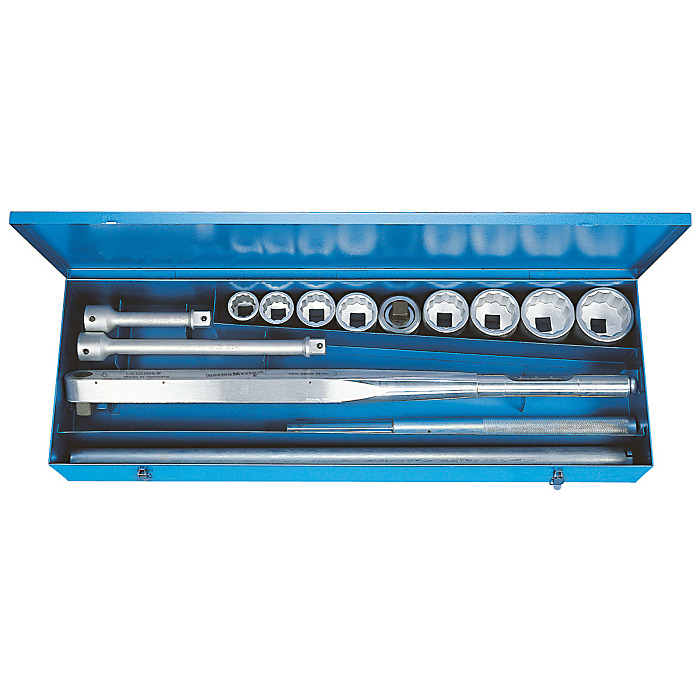

GEDORE Torque spanner set DREMOMETER E MM 8564-03

GEDORE Torque spanner set DREMOMETER E MM 8564-03 Thumbnail

GEDORE Torque spanner set DREMOMETER E MM 8564-03

Sku: T-83387

Discontinued item

Scale division: 50 N·m
Material No.: 7696060

Drive square: 25mm - 1 Zoll
Working area N.m cN.m: 750-2000Nm

Made in Germany

Product data

Manufacturer:

GEDORE Werkzeugfabrik GmbH & Co. KG

Condition:

NEW

Sku:

T-83387

SKU manufacturer:

8564-03

GTIN Code (EAN):

4002805856437

Weight:

30,00 Kg

All information relating to products from GEDORE Werkzeugfabrik GmbH & Co. KG. Technical and optical modifications of the manufacturer and errors reserved. This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.

Product description

Application:- Controlled screw tightening in the range of 750-2000 N-m- Used in almost all industrial production areasDesign:- Classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable works certificate. Calibrated to a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is exceeded for your safety.- 1 square drive with pin lock DIN 3120 - B 25, ISO 1174- Automatic short travel release with tactile and audible signal- Single scale with a graduation of 50 N-mTechnical advantage/function:- Lightweight and robust (as the housing is made of an aluminium alloy), very workshop-friendly- No value shifts and influence on accuracy due to two-handed operation or operation outside the handle (as with conventional torque spanners). Both the square drive and the centre of rotation are on the same axis, ensuring high application safety, extendable to reduce the user’s workload. - Extremely low wear due to force reduction in a unique lever mechanism- Forged lever chain from the Group’s own quality forge- Highest precision even with heavy continuous use- Long service life and long service life- Easy operation - fast and safe torque tightening- Convenient adjustment thanks to elegant, captive adjustment knob at the end of the handle- Single and double square drive for controlled right or left-hand tightening

Additional information

Scale division:

50 N·m

Material No.:

7696060

Drive square:

25mm - 1 Zoll

Working area N.m cN.m:

750-2000Nm

Height (mm):

40mm

Length l1 (mm):

932mm

Drive square (inches):

1Zoll

Drive square nominal size (mm):

25mm

Working/measuring range N·m (min/max) (N·m):

750-2000N·m

Distance from grip centre to pivot point (mm):

2213mm

Distance housing - square centre (mm):

30,0mm

Riser pipe Y/N:

8564-92 / 8572-74

Length Dremo with pipe (mm):

2353mm

Length nipple tube (mm):

925mm

Length nipple tube 2 (mm):

745mm
