Ganter Side Thrust Pins 415-ZD-32-A2-KG-2
Sku: T-952893
5,03 € (excl. legal VAT, excl. Shipping)
6,13 € MSRP
In stock,ready for shipping
Piece
Product variants
| Sku: | Name: | SKU manufacturer: | ||
|---|---|---|---|---|
|
T-952856 | Side Thrust Pins | 415-ZD-22-A2-KG-1 | |
|
T-952857 | Side Thrust Pins | 415-ZD-22-A2-KG-2 | |
|
T-952892 | Side Thrust Pins | 415-ZD-32-A2-KG-1 | |
|
T-952928 | Side Thrust Pins | 415-ZD-39-A2-KG-1 | |
|
T-952929 | Side Thrust Pins | 415-ZD-39-A2-KG-2 |
doneStandard type: GN
doneMaterial: ZD, zinc die-cast
doneGN 415-ZD-32-A2-KG-2
doneGN 415-ZD-32-A2-KG-2
doneGanter standard parts
Ganter standard parts Side pressure pieces GN 415-ZD-32-A2-KG-2
Content:
1 Piece
Shipping:
41,93 € Versandservice to United Kingdom
Lieferung:
Provider:
Sales and delivery by ToolTeam Köln
Payment methods:
Returns:
Security:
Product data
Manufacturer:
Ganter Norm-elemente - Otto Ganter GmbH & Co. KG
Condition:
NEW
Sku:
T-952893
SKU manufacturer:
415-ZD-32-A2-KG-2
GTIN Code (EAN):
4045525581302
Weight:
0,03 Kg
All information relating to products from Ganter Norm-elemente - Otto Ganter GmbH & Co. KG. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description

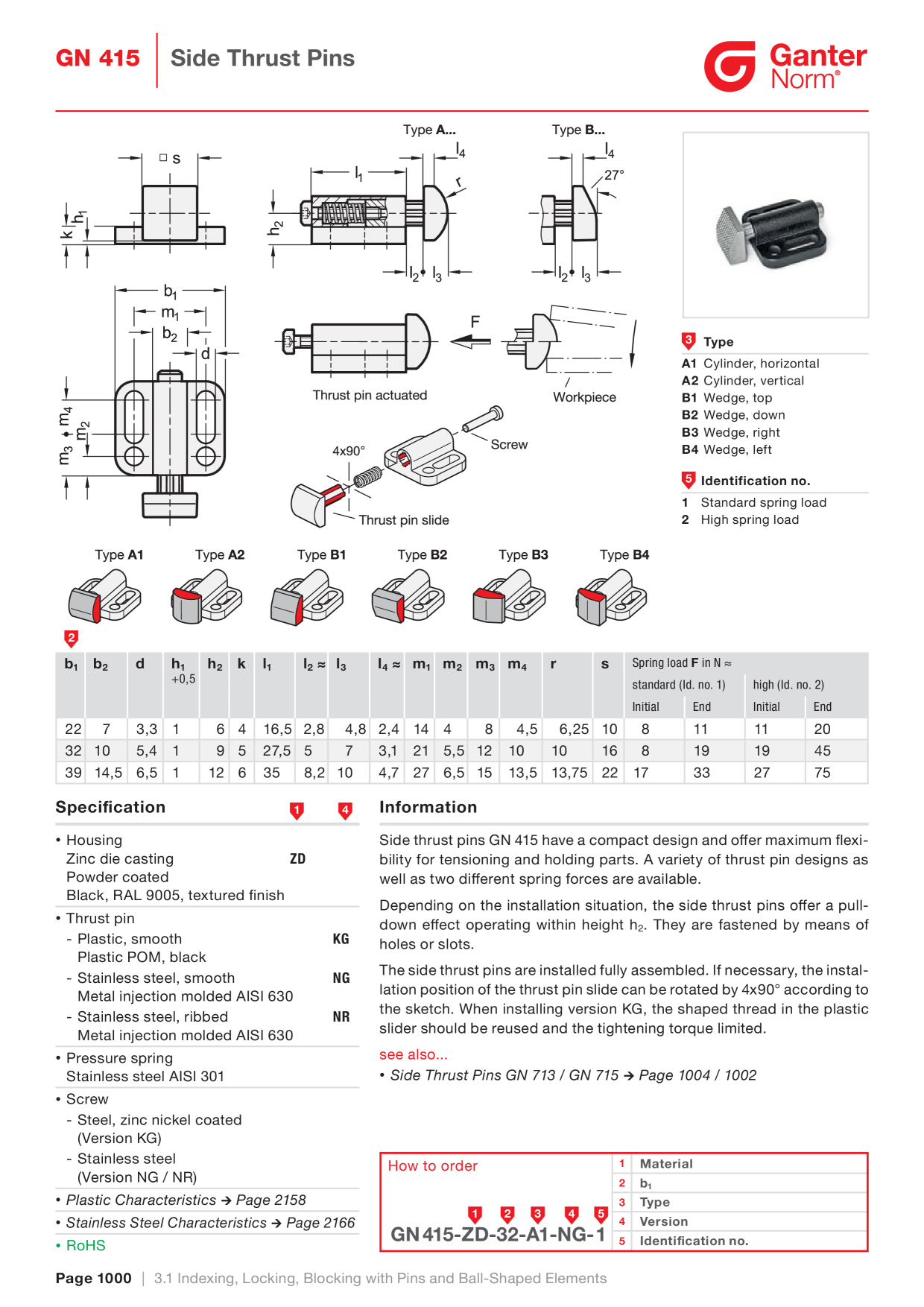

Side thrust pins GN 415 have a compact design and offer maximum flexibility for tensioning and holding parts. A variety of thrust pin designs as well as two different spring forces are available.Depending on the installation situation, the side thrust pins offer a pull-down effect operating within height h2. They are fastened by means of holes or slots.The side thrust pins are installed fully assembled. If necessary, the installation position of the thrust pin slide can be rotated by 4x90° according to the sketch. When installing version KG, the shaped thread in the plastic slider should be reused and the tightening torque limited.
Additional information
Reach:
J
RoHS:
J
