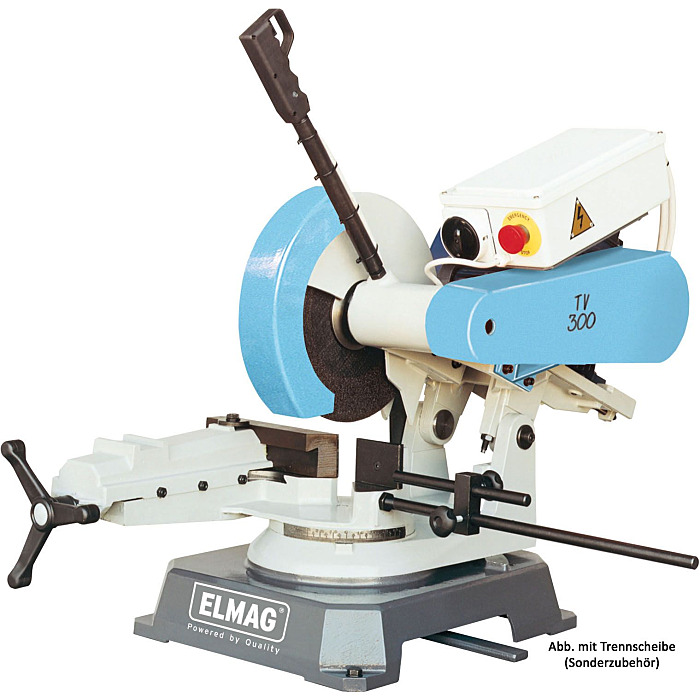

ELMAG Metal cutting machine 78064
Sku: T-491663
€2,132.31 (excl. legal VAT, excl. Shipping)
In stock,ready for shipping within 24h
Piece
doneMetall-Trennmaschinen - Serie TV
doneModel TV 300
doneModel TV 300
Metal cutting machine Model TV 300|High speed for an extra-smooth cut|Standard features|Application examples -|Special accessories|Modern cutting machines for cutting rod materials such as round and shaped pipes, profiles and solid materials made of steel, INOX/NIRO/stainless steel, cast iron and non-ferrous metals. Ideal for indoor use, also for outdoor use under protected conditions, e.g. on large construction sites for rapid separation of construction and reinforcement irons.|- TV metal cutting machine
- Bar lock with material stop
- WSS quick-action angle clamp/angle scale
- Adjustable cutting depth stop
- Cutting and grinding vice
- Adjustable jaws
- High-performance belt drive
- ERGO operating lever with reset
- Safety switch on handle
- Self-closing cutting disc protection
- Belt drive safety cover
- Emergency stop/no-voltage protection
- Tool/Operating instructions/CE|Metal construction
- Mechanical
engineering - Equipment
construction - Plant
construction - Pipeline
construction - Boiler
construction - Tank
construction - Installers
- Vehicle workshops
- Body construction
- Locksmiths
- Forges
- Sheet metal
shops - Insulating
companies - Construction
industry - Agriculture
- Vocational
schools - Training
workshops - Home workshops|- Sheet
steel base - Cut-off wheel 300x3,5x25,4 mm
- Bar lock with material stop
- WSS quick-action angle clamp/angle scale
- Adjustable cutting depth stop
- Cutting and grinding vice
- Adjustable jaws
- High-performance belt drive
- ERGO operating lever with reset
- Safety switch on handle
- Self-closing cutting disc protection
- Belt drive safety cover
- Emergency stop/no-voltage protection
- Tool/Operating instructions/CE|Metal construction
- Mechanical
engineering - Equipment
construction - Plant
construction - Pipeline
construction - Boiler
construction - Tank
construction - Installers
- Vehicle workshops
- Body construction
- Locksmiths
- Forges
- Sheet metal
shops - Insulating
companies - Construction
industry - Agriculture
- Vocational
schools - Training
workshops - Home workshops|- Sheet
steel base - Cut-off wheel 300x3,5x25,4 mm
Content:
1 Piece
Shipping:
The shipping costs for United Kingdom could not be calculated automatically.
Provider:
Sales and delivery by ToolTeam®
Payment methods:
Returns:
Security:
Product data
Manufacturer:
ELMAG
Condition:
NEW
Sku:
T-491663
SKU manufacturer:
78064
GTIN Code (EAN):
9004853780646
Weight:
115,00 Kg
All information relating to products from ELMAG. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description
- Virtually burr-free cutting: super-fast cutting disc drive with high-precision bearing
- Highest repeatability in serial cutting: strong bar lock with adjustable material stop
- Fast and precise angle adjustment with only one handle: with WSS quick-release angle clamp and angular scale 45-0-45°
- Cutting depth can be set precisely: with adjustable depth impact
- Variable clamping range: Clamping jaw laterally adjustable
- Powerful: ideal drive unit dimensions with high torque
- Ideal drive form: smooth, high-performance V-belt drive
- Stable, sensitive cutting guide: ERGO control lever with permanent safety switch and automatic reset
- Reliable: V-belt drive with fixed protective cover, self-closing cutting disk protection, emergency stop button, zero voltage release, CE-compliant
- Durable: very robust commercial and industrial design
- Separation range max. 140x80 mm
- Cut-off wheel diameter 300mm
- High power drive - 4,000 W
- High idle speed - 5,400 rpm
- TB 125 Vario - klein ganz groß, Moderne Trennschleifmaschinen für das Ablängen von Stangenmaterialien wie Rund- und Formrohre, Formprofile und Vollmaterialien aus Stahl, INOX/ NIRO/ Edelstahl, Guss- und Nichteisenmetalle. Ideal für den Indoor-Einsatz, auch für Outdoor unter geschützten Bedingungen, z.B. auf Großbaustellen für das rasche Trennen von Bau- und Armierungseisen.
- - TV Metall-Trennmaschine
- Stangensperre mit Materialanschlag
- WSS Winkelschnellspanner/Winkelskala
- Trenntiefenanschlag verstellbar
- Trennschleifschraubstock
- Spannbacke verstellbar
- Hochleistungs-Riemenantrieb
- ERGO-Bedienhebel mit Rückstellung
- Sicherheits-Dauerschalter am Handgriff
- Trennscheibenschutz selbstschließend
- Schutzabdeckung Riemenantrieb
- Not-Aus/Nullspannungsauslösung
- Werkzeug/Betriebsanleitung/CE - - Metallbau
- Maschinenbau
- Gerätebau
- Anlagenbau
- Rohrleitungsbau
- Kesselbau
- Behälterbau
- Installateure
- KFZ-Werkstätten
- Karosseriebau
- Schlossereien
- Schmieden
- Spenglereien
- Isolierbetriebe
- Baugewerbe
- Landwirtschaft
- Berufsschulen
- Lehrwerkstätten
- Heimwerkstätten - - Stahlblechsockel
- Trennschleifscheibe 300x3,5x25,4 mm
Additional information
Width (mm):
900mm
Rectangular tube cutting area at 45° right-angled bevel (mm):
Max. 100x70mm
Speed (UpM):
5.400UpM
Height (mm):
880mm
Length (mm):
830mm
Engine power (W):
4.000W
Mains connection (V/Hz):
400 / 50-60V/Hz
Rectangular tube cutting area at 0° (mm):
Max. 140x80mm
Round tube cutting area at 0° (mm):
Max. 100mm
Round tube cutting area at 45° right-angled bevel (mm):
Max. 90mm
Vice jaw width max. (mm):
190mm
Saw blade outer diameter (mm):
300mm
Separating disc inner diameter (mm):
25,4mm
Dihedral angle (°):
45-0-45°
Square tube cutting area at 0° (mm):
Max. 90mm
