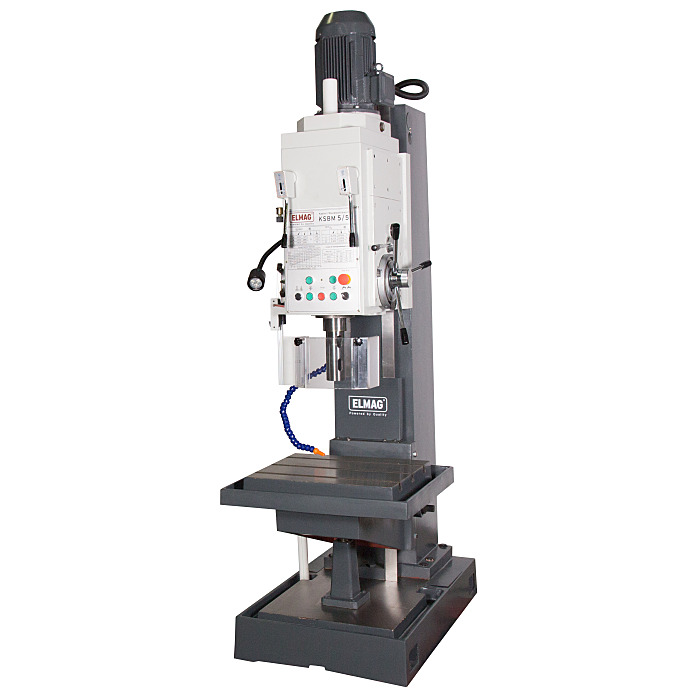

ELMAG Box column drill 82017
Sku: T-498575
Product on backorder,
ready to ship within 14 days
ready to ship within 14 days
Piece
Product variants
| Sku: | Name: | SKU manufacturer: | ||
|---|---|---|---|---|
|
T-491315 | Box column drill | 82019 | |
|
T-497525 | Box column drill | 82014 | |
|
T-498281 | Box column drill | 82018 | |
|
T-501395 | Box column drill | 82016 | |
|
T-507505 | Box column drill | 82015 |
doneKastensäulenbohrmaschinen - Serie KSBM
doneModel KSBM 5/50
doneModel KSBM 5/50
Box column drill Model KSBM 5/50|Super heavy - Professional drilling units of 4,000 W drilling units|Standard features|with high torque and high feed force,
excellent drilling performance of 50 mm, high precision even under extreme loads:
The KSBM models are universally applicable geared
drilling machines for large requirements. Their extra-heavy
grey cast iron construction guarantees stability and maximum
running smoothness - e.g. for serial machining of castings or welded
parts in machine and steel construction plants.
Thanks to a high-strength precision gearbox
and the robust, backlash-free fixed drilling table, the KSBM models are
also well suited for friction work. The KSBM’s largely automated
thread-cutting device with adjustable,
automatic reversal of direction of rotation is particularly
noteworthy.
With 9 speeds and 9 feed
stages, the KSBM models offer 9 speeds and 9 speeds of advance.|quick-action drill chuck B 16, 1- 16 mm
- taper mandrel MK 5 / B 16
- reducing sleeve MK 5 / MK 2
- tool set with drive-out
wedge - operating instructions / CE
excellent drilling performance of 50 mm, high precision even under extreme loads:
The KSBM models are universally applicable geared
drilling machines for large requirements. Their extra-heavy
grey cast iron construction guarantees stability and maximum
running smoothness - e.g. for serial machining of castings or welded
parts in machine and steel construction plants.
Thanks to a high-strength precision gearbox
and the robust, backlash-free fixed drilling table, the KSBM models are
also well suited for friction work. The KSBM’s largely automated
thread-cutting device with adjustable,
automatic reversal of direction of rotation is particularly
noteworthy.
With 9 speeds and 9 feed
stages, the KSBM models offer 9 speeds and 9 speeds of advance.|quick-action drill chuck B 16, 1- 16 mm
- taper mandrel MK 5 / B 16
- reducing sleeve MK 5 / MK 2
- tool set with drive-out
wedge - operating instructions / CE
Content:
1 Piece
Shipping:
The shipping costs for United Kingdom could not be calculated automatically.
Provider:
Payment methods:
Returns:
Security:
Product data
Manufacturer:
ELMAG
Condition:
NEW
Sku:
T-498575
SKU manufacturer:
82017
GTIN Code (EAN):
9004853820175
Weight:
1250,00 Kg
All information relating to products from ELMAG. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description
- Particularly torsion-resistant, heavy-duty box stand, drilling
table and base plate construction - Strongly ribbed, fine-grained grey cast iron
- Very smooth running even under high loads
- Drilling capacity O 50 mm
- Large cubature
- Spindle projection 335 mm
- Durable quality gearbox,
9 speeds - Super powerful drive motor
4,000 W, 400 V - Simple speed and feed
adjustment by means of adjusting lever - Drilling spindle with precision bearing,
high concentricity accuracy - High torque on the drilling
spindle 350 Nm - Right and left rotation
- Thread cutting device with automatic reversal
of direction of rotation - Automatic quill feed,
9-stage - High feed
force 16,000 N - Drilling depth scale and stop
- Height-adjustable drilling table with T-slots and coolant trough
- LED drill table lighting
- Torsion-resistant, ground dovetail guides
- Integrated coolant system with return line, tank in machine base
- Emergency stop / zero voltage release
- TB 125 Vario - klein ganz groß, Bohren mit hohem Drehmoment und großer Vorschubkraft,
exzellente Bohrleistung von 50 mm, hohe Präzision auch bei extremen Belastungen:
Die KSBM-Modelle sind universell einsetzbare Getriebe-
bohrmaschinen für den großen Bedarf. Ihre extraschwere
Graugusskonstruktion bürgt für Stabilität und höchste
Laufruhe - z.B. bei der seriellen Gussteil- oder Schweißteil-
bearbeitung in Maschinen- und Stahlbaubetrieben.
Dank eines hoch belastbaren Präzisionsgetriebes
und des robusten, spielfrei fixierbaren Bohrtisches sind
die KSBM-Modelle auch für Reibarbeiten gut geeignet.
Hervorzuheben ist die weitgehend automatisierte
Gewindeschneideinrichtung der KSBM mit einstellbarer,
automatischer Drehrichtungsumkehr.
Mit 9 Drehzahlen und 9 Vorschubstufen
bieten die KSBM ausreichend Spielraum für eine stets
passende Schnittgeschwindigkeit. - - Schnellspannbohrfutter B 16, 1- 16 mm
- Kegeldorn MK 5 / B 16
- Reduzierhülse MK 5 / MK 2
- Werkzeugsatz mit Austreibkeil
- Bedienungsanleitung / CE
Additional information
automatic quick forward and reverse feed ():
-
Drill head stroke (mm):
200mm
Drilling capacity in steel (mm):
50mm
Drilling table area (mm):
560 x 480mm
Drilling table stroke (mm):
315mm
Torque (N·m):
350N·m
Speed range (UpM):
45 - 850UpM
Speed stages ():
9
Thread cutting performance ():
M42
Height (total) (mm):
2.535mm
Displacement (mm):
560 x 480 x 725mm
Coolant pump (W):
90W
Coolant pump performance (l/min):
25l/min
Length x Width (mm):
1.040 x 905mm
Engine power (W):
(2-stufig) 4.000W
Mains connection (V/Hz):
400 / 50 - 60V/Hz
Pine pitch table min./max. (mm):
215 - 725mm
Pinole gap (mm):
250mm
Pinole feed stages:
9
Pinole feed (mm/U):
0,056 - 1,8mm/U
Quick forward and reverse feed (W):
-W
Spindle reception (rotating spindle) ():
MK 5
Thread pitch (mm):
335mm
T-slots, width (mm):
3 / 18mm
Feed force (N):
16000N
