AMF 6830ST-3 Horizontal clamp with black handle and safety lock 558156
Sku: T-297708
€61.25 (excl. legal VAT, excl. Shipping)
€78.99 MSRP
In stock,ready for shipping within 48h
Piece
Product variants
| Sku: | Name: | SKU manufacturer: | ||
|---|---|---|---|---|
|
T-297709 | 6830ST-4 Horizontal clamp with black handle and safety lock | 558157 |
doneWeight (g): 390g
doneC (mm): 25,7
doneC (mm): 25,7
doneE (mm): 38
doneF (mm): 14
doneF (mm): 14
AMF - ANDREAS MAIER GmbH & Co. KG 6830ST-3 Horizontal clamp with black handle and safety lock 558156
Content:
1 Piece
Shipping:
€41.93 Versandservice to United Kingdom
plus €10.00 stock transfer surcharge
For orders under €63.03 order total plus €9.24 Surcharge
Lieferung:
Provider:
Sales and delivery by ToolTeam Köln
Payment methods:
Returns:
Security:
Product data
Manufacturer:
AMF - Andreas Maier GmbH & Co.KG Schloss- u. Werkzeugfabrik
Condition:
NEW
Sku:
T-297708
SKU manufacturer:
558156
GTIN Code (EAN):
4020772019082
Weight:
0,39 Kg
All information relating to products from AMF - Andreas Maier GmbH & Co.KG Schloss- u. Werkzeugfabrik. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description

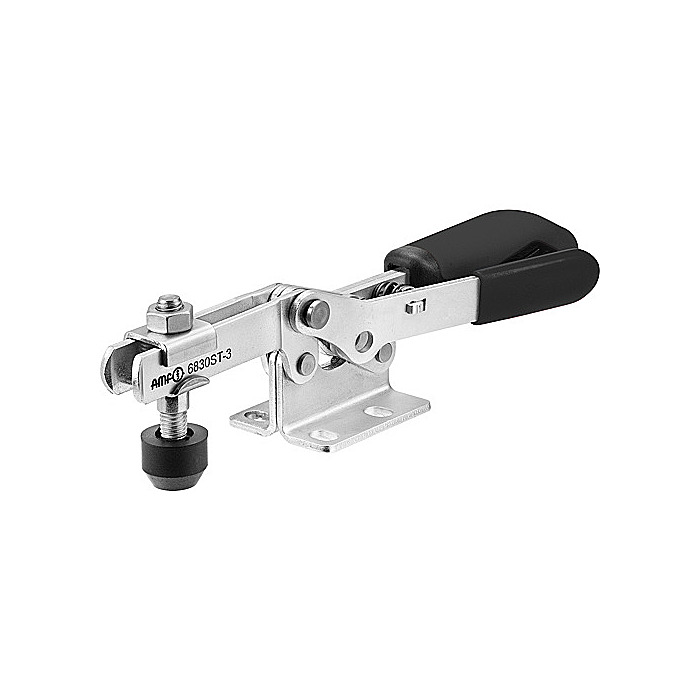

Horizontal clamp with black handle and safety lock for clamping position and open position.
With open holding arm and horizontal base.
Galvanized and passivated. Rivets made of stainless steel that run in case-hardened bearing bushes. Bearings greased.
Ergonomic, oil-resistant handle with large hand rest and soft component. Loss protection for the clamping screw at the end of the clamping arm.
Complete with tempered, galvanized clamping screw
No. 6890.
With open holding arm and horizontal base.
Galvanized and passivated. Rivets made of stainless steel that run in case-hardened bearing bushes. Bearings greased.
Ergonomic, oil-resistant handle with large hand rest and soft component. Loss protection for the clamping screw at the end of the clamping arm.
Complete with tempered, galvanized clamping screw
No. 6890.
- Note:
Suitable sensor query for size 3 see No. 6897S.
Additional information
Weight (g):
390g
C (mm):
25,7
E (mm):
38
F (mm):
14
B (mm):
73
A (mm):
8
H [mm]:
32
L (mm):
13,0
d1 (mm):
5,1
Size:
3
M (mm):
22,0-31,8
Ø P (mm):
50
N (mm):
45,5
L1 (mm):
206
K (mm):
7
h1 (mm):
48,5
m1 (mm):
31,6
h2 (mm):
86,0
I (mm):
15
F1* (kN):
1,8kN
F2* (kN):
2,5kN
Thrust screw:
M8x45
HW min.:
-2
HW max.:
9
α:
90°
Diameter:
6,5
