AMF 6820A-2 pneumatic clamp 555062
Sku: T-297962
€217.27 (excl. legal VAT, excl. Shipping)
€290.00 MSRP
In stock,ready for shipping within 48h
Piece
Product variants
| Sku: | Name: | SKU manufacturer: | ||
|---|---|---|---|---|
|
T-295950 | T-slot screw DIN787K8 M 6x 6x 63 with nut and washer | 84228 | |
|
T-297961 | 6820A-1 pneumatic clamp | 555061 | |
|
T-297963 | 6820A-3 pneumatic clamp | 555063 | |
|
T-297964 | 6820A-4 pneumatic clamp | 555064 |
doneWeight (g): 600g
doneC (mm): 20
doneC (mm): 20
doneE (mm): 25
doneF (mm): 11
doneF (mm): 11
AMF - ANDREAS MAIER GmbH & Co. KG 6820A-2 pneumatic clamp 555062
Content:
1 Piece
Shipping:
€41.93 Versandservice to United Kingdom
plus €10.00 stock transfer surcharge
Lieferung:
Provider:
Sales and delivery by ToolTeam Köln
Payment methods:
Returns:
Security:
Product data
Manufacturer:
AMF - Andreas Maier GmbH & Co.KG Schloss- u. Werkzeugfabrik
Condition:
NEW
Sku:
T-297962
SKU manufacturer:
555062
GTIN Code (EAN):
4020772004019
Weight:
0,65 Kg
All information relating to products from AMF - Andreas Maier GmbH & Co.KG Schloss- u. Werkzeugfabrik. Technical and optical modifications of the manufacturer and errors reserved.
This page has been machine-translated, the original german version can be found here, please also note the Translation Disclaimer.
Product description
Pneumatic clamp with horizontal cylinder attachment.
Equipped with pneumatic cylinder, double-acting. With magnetic piston for end position sensing. With throttle holes for dampened speed. Clamp galvanized and passivated. Rivets made of stainless steel, which run in case-hardened bearing bushes in sizes 2 to 4. Bearing points greased.
Complete with tempered, galvanized clamping screw no. 6890.
Equipped with pneumatic cylinder, double-acting. With magnetic piston for end position sensing. With throttle holes for dampened speed. Clamp galvanized and passivated. Rivets made of stainless steel, which run in case-hardened bearing bushes in sizes 2 to 4. Bearing points greased.
Complete with tempered, galvanized clamping screw no. 6890.
- Note:
Suitable proximity switches for end position sensing are available under order number 392241.
Design: PUR cable 0.3 m with M8 plug connection and rotating knurled nut.
Switching function: normally open.
Output: PNP
Additional information
Weight (g):
600g
C (mm):
20
E (mm):
25
F (mm):
11
B (mm):
51,5
A (mm):
6
H [mm]:
26,0
L (mm):
12,5
Size:
2
M (mm):
27
R (mm):
M5
N (mm):
54,5
L1 (mm):
145,0
K (mm):
6,0
h1 (mm):
62,0
h2 (mm):
42,5
I (mm):
12
F1* (kN):
1,0kN
F2* (kN):
1,2kN
Thrust screw:
M6 x 35
HW min.:
-1,0
HW max.:
7,0
F3 (kN):
0,70kN
F5 (kN):
0,30kN
Vn (dm³):
0,26dm³
Piston-Ø:
25
F4 (kN):
1,0kN
Öffnungswinkel:
91,5°
Diameter:
5,5
ØW:
12
Related results
4020772004019
power clamps
clamping irons
clamping pads
straightening and support elements
clamping bolts and floating clamps
clamping screws
nuts and washers
clamping sets and accessories
pull-down clamps
positioning elements
stops and precision T-nuts
eccentric and centering clamps
AMF
555062
AMF - ANDREAS MAIER GmbH & Co. KG

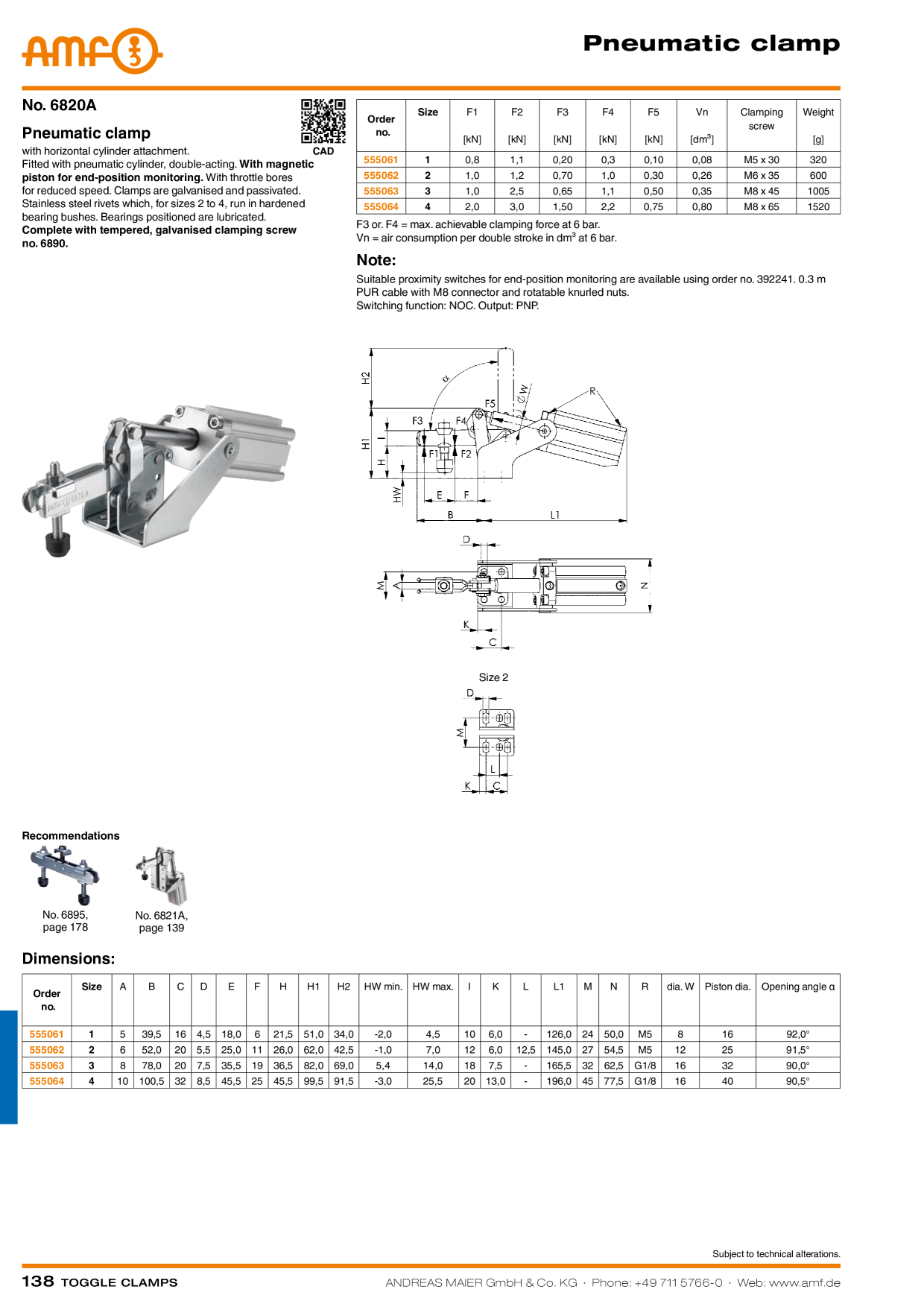

Complete catalogs
